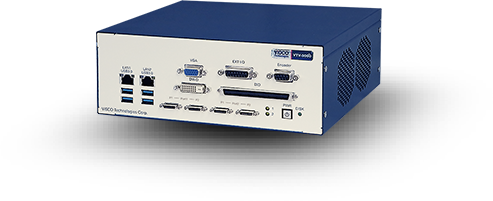

This image processing inspection system is small compared to other models in the VTV-9000 series. It is a high-end version of the VTV-9000mini that achieves high-speed image importing while remaining small.
〈Model lineup〉
2-camera model with high-speed-mode support
| Model number | V9KZDPL2-2MV |
|---|---|
| Camera mode | Normal／High-speed（Cameras with different numbers of pixels can be mixed.） |
| Maximum number of connected cameras | 2 |

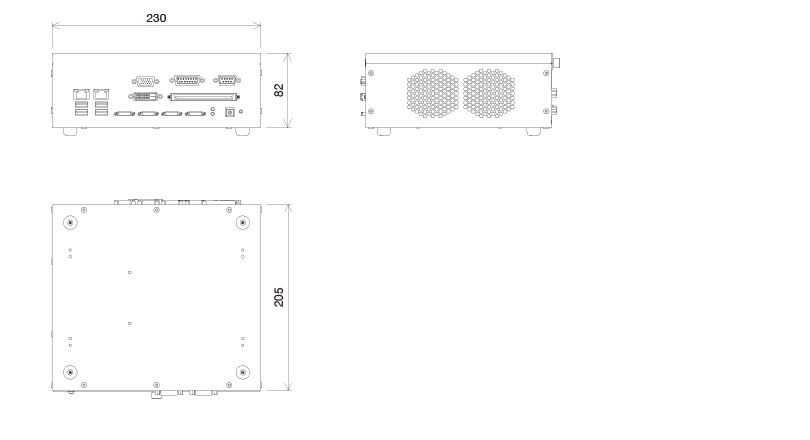

| External dimensions*1 | 230（W）× 205（D）× 82（H）mm |
| Weight | 2.7kg |
| Power consumption | 144W or less |
※You can scroll horizontally.
*1 It does not include projections in external dimensions.
| Model number | Load resolution （pixel） |
Image transfer speed | External dimensions (W) x (H) x (D) |
||
|---|---|---|---|---|---|
| Standard mode | High-speed mode | ||||
 |
VTC-R650M00-VI | 9344x7000 | - | 111ms (9fps) |
55x55x45mm 2.2x2.2x1.8inch |
 |
VTC-R650C00-VI | ||||
※You can scroll horizontally.
| Model number | Load resolution （pixel） |
Image transfer speed | External dimensions (W) x (H) x (D) |
||
|---|---|---|---|---|---|
| Standard mode | High-speed mode | ||||
|
VTC-R250M00-VI | 5120x5120 | - | 46ms (22fps) |
55x55x45mm 2.2x2.2x1.8inch |
|
VTC-R250C00-VI | ||||
|
VTC-25MCM00-NV | 40ms (25fps) |
68x68x80mm 2.7x2.7x3.1inch |
||
※You can scroll horizontally.
| Model number | Load resolution
（pixel） |
Image transfer speed | External dimensions (W) x (H) x (D) |
||
|---|---|---|---|---|---|
| Standard mode | High-speed mode | ||||
|
VTC-R120M00-SE | 4080x3000 | 67ms(15fps) 77ms(13fps)*1 |
19ms (54fps) |
35x35x40.7mm 1.4x1.4x1.6inch |
|
VTC-R120C00-SE | ||||
|
VTC-12MWM00-VI | 4096x3072 | 91ms (11fps) |
24ms (42fps) |
55x55x30mm 2.2x2.2x1.2inch |
|
VTC-12MWC00-VI | ||||
※You can scroll horizontally.
*1 When connected to a VTV-9000mini with up to 4 camera connections
| Model number | Load resolution
（pixel） |
Image transfer speed | External dimensions (W) x (H) x (D) |
||
|---|---|---|---|---|---|
| Standard mode | High-speed mode | ||||
|
VTC-R090M00-SE | 4080x2160 | 50ms(20fps) 56ms(18fps)*1 |
14ms (74fps) |
35x35x40.7mm 1.4x1.4x1.6inch |
|
VTC-R090C00-SE | ||||
※You can scroll horizontally.
When connected to a VTV-9000mini with up to 4 camera connectionsVTV-9000mini| Model number | Load resolution
（pixel） |
Image transfer speed | External dimensions (W) x (H) x (D) |
||
|---|---|---|---|---|---|
| Standard mode | High-speed mode | ||||
|
VTC-R050M00-SE | 2448x2048 | 29ms(35fps) 30ms(33fps)*1 |
7.6ms (132fps) |
35x35x40.7mm 1.4x1.4x1.6inch |
|
VTC-R050C00-SE | ||||
|
VTC-D050M0A-SE | 2448x2048 | 29ms(35fps) 30ms(33fps)*1 |
- | 35x35x40.7mm 1.4x1.4x1.6inch |
|
VTC-D050C0A-SE | ||||
※You can scroll horizontally.
*1 When connected to a VTV-9000mini with up to 4 camera connections
| Model number | Load resolution
（pixel） |
Image transfer speed | External dimensions (W) x (H) x (D) |
||
|---|---|---|---|---|---|
| Standard mode | High-speed mode | ||||
|
VTC-400PM00-VI | 2048x2048 | 26ms (38fps) |
6.7ms (150fps) |
29x29x55mm 1.1x1.1x2.2inch |
※You can scroll horizontally.
| Model number | Load resolution
（pixel） |
Image transfer speed | External dimensions (W) x (H) x (D) |
||
|---|---|---|---|---|---|
| Standard mode | High-speed mode | ||||
|
VTC-D030M00-SE | 2048×1536 | 19ms (52fps) |
- | 35x35x40.7mm 1.4x1.4x1.6inch |
|
VTC-D030C00-SE | ||||
|
VTC-R030T00-JC | - | 18ms (55fps) | 44x44x74mm 1.7x1.7x2.9inch |
|
|
VTC-R030M00-SE | 2048×1536 | 19ms (52fps) |
5.2ms (193fps) |
35x35x40.7mm 1.4x1.4x1.6inch |
|
VTC-R030C00-SE | ||||
※You can scroll horizontally.
| Model number | Load resolution
（pixel） |
Image transfer speed | External dimensions (W) x (H) x (D) |
||
|---|---|---|---|---|---|
| Standard mode | High-speed mode | ||||
|
VTC-200PM00-VI | 2048x1088 | 14ms (70fps) |
3.6ms (280fps) |
29x29x55mm 1.1x1.1x2.2inch |
|
VTC-200PC00-VI | ||||
※You can scroll horizontally.
| Model number | Load resolution
（pixel） |
Image transfer speed | External dimensions (W) x (H) x (D) |
||
|---|---|---|---|---|---|
| Standard mode | High-speed mode | ||||
|
VTC-D016M0A-SE | 1440x1080 | 6.4ms(156fps) | - | 28x28x40mm 1.1x1.1x1.6inch |
|
VTC-D016C0A-SE | ||||
|
VTC-R016T00-JC | - | 7.9ms (126fps) | 44x44x74mm 1.7x1.7x2.9inch |
|
※You can scroll horizontally.
| Model number | Load resolution
（pixel） |
Image transfer speed | External dimensions (W) x (H) x (D) |
||
|---|---|---|---|---|---|
| Standard mode | High-speed mode | ||||
 |
VTC-D013R00-AD | 1248x1024 | 7.8ms (129fps) |
- | 58x58x90mm 2.3x2.3x3.5inch |
※You can scroll horizontally.
All cameras offer partial support.
VT Digital cameras are original ViSCO digital cameras.
External dimensions do not include connectors.
| Product name | Model number | Connector shape (The camera side―Image side) |
Shape |
|---|---|---|---|
| 3-m robot cable | VTCC-3SSRN003H | SDR-SDR | Straight |
| VTCC-3MSRN003H | MDR-SDR | ||
| 5-m robot cable | VTCC-3SSRN005H | SDR-SDR | Straight |
| VTCC-3MSRN005H | MDR-SDR | ||
| 3-m robot cable, L-shaped | VTCC-3SSRU003H | SDR-SDR | L-shaped, UP |
| 5-m robot cable, L-shaped | VTCC-3SSRU005H | SDR-SDR | L-shaped, UP |
| 3-m robot cable, L-shaped | VTCC-3SSRD003H | SDR-SDR | L-shaped, DOWN |
| 5-m robot cable, L-shaped | VTCC-3SSRD005H | SDR-SDR | L-shaped, DOWN |
| 3-m robot cable for high-speed cameras |
VTCC-4SSRN103H | SDR-SDR | Straight |
| 3-m robot cable for high-speed cameras |
VTCC-4MSRN003H | MDR-SDR | Straight |
※You can scroll horizontally.
| Camera Model No. | Camera Type | Camera cable Model No. | Camera cable Type |
|---|---|---|---|
| VTC-R650M00-VI | 65MP, Monochrome,M42 P1 mount | VTCC-4SSRN102H VTCC-4SSRN103H VTCC-4SSRL103H VTCC-4SSRR103H |
straight/2m straight/3m L-shaped/LEFT/3m L-shaped/RIGHT/3m |
| VTC-R650C00-VI | 65MP, color,M42 P1 mount | ||
| VTC-R250M00-VI | 25MP, Monochrome | ||
| VTC-R250C00-VI | 25MP, color | ||
| VTC-R120M00-SE | 12MP, Monochrome | ||
| VTC-R120C00-SE | 12MP, color | ||
| VTC-12MWM00-VI | 12MP, Monochrome, M42 P1 mount | ||
| VTC-12MWC00-VI | 12MP, color, M42 P1 mount | ||
| VTC-R120M0 S-Series | 12MP Monochrome Super Focusing Cameras | ||
| VTC-R090M00-SE | 9MP, Monochrome | ||
| VTC-R090C00-SE | 9MP, color | ||
| VTC-R050M00-SE | 5MP, Monochrome | ||
| VTC-R050C00-SE | 5MP, color | ||
| VTC-R050M0 S-Series | 5MP Monochrome Super Focusing Cameras | ||
| VTC-R050C0 S-Series | 5MP Color Super Focusing Cameras | ||
| VTC-400PM00-VI | 4MP, Monochrome | ||
| VTC-R030M00-SE | 3MP, Monochrome | ||
| VTC-R030C00-SE | 3MP, color | ||
| VTC-200PM00-VI | 2MP, Monochrome | ||
| VTC-200PC00-VI | 2MP, color | ||
| VTC-25MCM00-NV | 25MP, Monochrome, F mount, AC power adapter required | VTCC-4MSRN103H | straight/3m |
| VTC-R120M00-SE | 12MP, Monochrome | VTCC-3SSRN001H VTCC-3SSRN003H VTCC-3SSRN005H VTCC-3SSRU003H VTCC-3SSRU005H VTCC-3SSRD003H VTCC-3SSRD005H VTCC-3SSRR003H VTCC-3SSRR005H VTCC-3SSRL003H VTCC-3SSRL005H |
straight/1m straight/3m straight/5m L-shaped/UP/3m L-shaped/UP/5m L-shaped/DOWN/3m L-shaped/DOWN/5m L-shaped/RIGHT/3m L-shaped/RIGHT/5m L-shaped/LEFT/3m L-shaped/LEFT/5m |
| VTC-R120C00-SE | 12MP, color | ||
| VTC-12MWM00-VI | 12MP Monochrome, M42 P1 mount | ||
| VTC-12MWC00-VI | 12MP, color, M42 P1 mount | ||
| VTC-R120M0 S-Series | 12MP Monochrome Super Focusing Cameras | ||
| VTC-R090M00-SE | 9MP, Monochrome | ||
| VTC-R090C00-SE | 9MP, color | ||
| VTC-R050M00-SE | 5MP, Monochrome | ||
| VTC-R050C00-SE | 5MP, color | ||
| VTC-R050M0 S-Series | 5MP Monochrome Super Focusing Cameras | ||
| VTC-R050C0 S-Series | 5MP Color Super Focusing Cameras | ||
| VTC-D050M0A-SE | 5MP, Monochrome | ||
| VTC-D050C0A-SE | 5MP, Color | ||
| VTC-D050M0 S-Series | 5MP Monochrome Super Focusing Cameras | ||
| VTC-D050C0 S-Series | 5MP Color Super Focusing Cameras | ||
| VTC-400PM00-VI | 4MP, Monochrome | ||
| VTC-R030M00-SE | 3MP, Monochrome | ||
| VTC-R030C00-SE | 3MP, Color | ||
| VTC-D030M00-SE | 3MP, Monochrome | ||
| VTC-D030C00-SE | 3MP, Color | ||
| VTC-200PM00-VI | 2MP, Monochrome | ||
| VTC-200PC00-VI | 2MP, Color | ||
| VTC-D016M0A-SE | 1.6M, Monochrome | ||
| VTC-D016C0A-SE | 1.6M, Color | ||
| VTC-D013R00-AD | 1.3M, IR, AC power adapter required |
※You can scroll horizontally.
| Flash Light Controllers | Flash Light Controllers Type | Hardware trigger cable Model No. | Hardware trigger cable Type |
|---|---|---|---|
| VTVFCV-0648-00 VTVFCV-1248-02 VTVFC-V-06-01 |
6 lighting connections 12 lighting connections, with link function 6 lighting connections |
VTTC-M150-07A | 0.7m |
| VTTC-M150-16A | 1.6m | ||
| VTTC-MW151-16A | 1.6m, 2-branch, connecting 2 controllers | ||
| VTTC-MF151-16A | 1.6m, 4-branch, connecting 4 controllers |
※You can scroll horizontally.
| I/O cable Model No. | I/O cable Type |
|---|---|
| VTIO-A96SN015E | 1.5m, loose ends on one side |
| VTIO-A96SN030E | 3m, loose ends on one side |
| VTIO-A96SN050E | 5m, loose ends on one side |
| VTIO-B96SW130A | 3m, connectors on both ends, Keyence PCL, MP3000/MP2000 series |
| VTIO-B96SW150A | 5m, connectors on both ends, Keyence PCL, KV-7000/KV-5000/KV-3000 series |
| VTIO-B96SW530A | 3m, connectors on both ends, YASKAWA controller MP3000/MP2000 series |
| VTIO-B96SW550A | 5m, connectors on both ends, YASKAWA controller MP3000/MP2000 series |
| VTIO-B96SW415A | 1.5m, connectors on both ends,OMRON PCL CJ series/NJ series/NX series |
| VTIO-B96SW430A | 3m, connectors on both ends,OMRON PCL CJ series/NJ series/NX series |
| VTIO-B96SW450A | 5m, connectors on both ends,OMRON PCL CJ series/NJ series/NX series |
※You can scroll horizontally.
| Encoder cable Model No. | Encoder cable Type |
|---|---|
| VTEC-M090-15A | 1.5m |
| VTEC-M090-30A | 3m |
※You can scroll horizontally.
The configuration and prices differ depending on the size of the object you want to inspect and the takt time. At ViSCO, we have a diverse lineup of image processing inspection systems, cameras, and other products to respond to the various needs of our customers. For details, please contact us here.
