VTV-9000mini

Standard model with high speed and performance

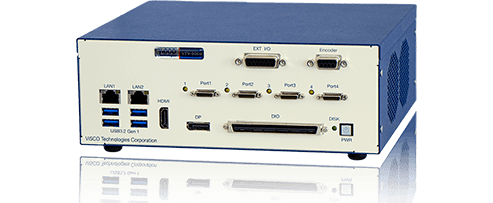

The VTV-9000mini features an original compact ViSCO chassis. It also has a uniquely designed board and an even more robust chassis, and it offers high-speed/high-performance while being super-compact.

〈Model lineup〉
4-camera setup

Hardware specifications

Model number V9KTDPL7-4MV
Camera mode Standard(mixed use of cameras with different pixel counts supported)
Maximum number of camera connections 4

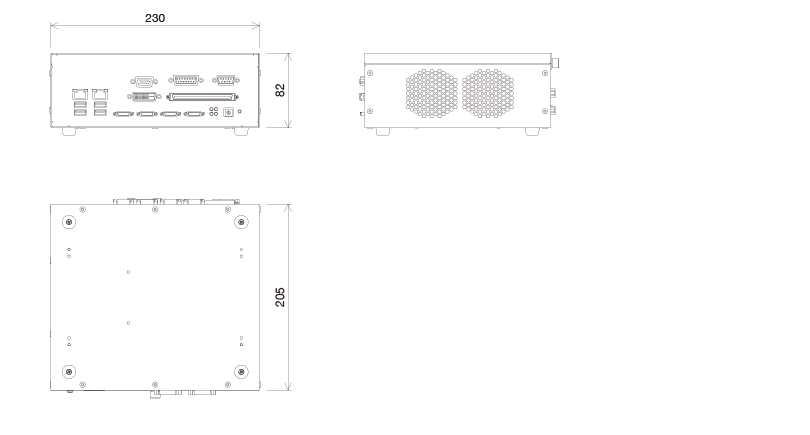

External dimensions 230(W)× 205(D)× 82(H)mm
9.1(W)× 8.1(D)× 3.2(H)inch
Weight 2.7kg
Power consumption < 144 W

※You can scroll horizontally.

External dimensions

12MP Monochrome/Color

Model number Load resolution
(pixel)
Image transfer speed External dimensions
(W) x (H) x (D)
Standard mode High-speed mode
Monochrome VTC-R120M00-SE 4080x3000 67ms(15fps)
77ms(13fps)*1
19ms
(54fps)
35x35x40.7mm
1.4x1.4x1.6inch
Color VTC-R120C00-SE
Monochrome VTC-12MWM00-VI 4096x3072 91ms
(11fps)
24ms
(42fps)
55x55x30mm
2.2x2.2x1.2inch
Color VTC-12MWC00-VI

※You can scroll horizontally.

*1 When connected to a VTV-9000mini with up to 4 camera connections

9MP Monochrome/Color

Model number Load resolution
(pixel)
Image transfer speed External dimensions
(W) x (H) x (D)
Standard mode High-speed mode
Monochrome VTC-R090M00-SE 4080x2160 50ms(20fps)
56ms(18fps)*1
14ms
(74fps)
35x35x40.7mm
1.4x1.4x1.6inch
Color VTC-R090C00-SE

※You can scroll horizontally.

When connected to a VTV-9000mini with up to 4 camera connectionsVTV-9000mini

5MP Monochrome/Color

Model number Load resolution
(pixel)
Image transfer speed External dimensions
(W) x (H) x (D)
Standard mode High-speed mode
Monochrome VTC-R050M00-SE 2448x2048 29ms(35fps)
30ms(33fps)*1
7.6ms
(132fps)
35x35x40.7mm
1.4x1.4x1.6inch
Color VTC-R050C00-SE
Monochrome VTC-D050M0A-SE 2448x2048 29ms(35fps)
30ms(33fps)*1
- 35x35x40.7mm
1.4x1.4x1.6inch
Color VTC-D050C0A-SE

※You can scroll horizontally.

*1 When connected to a VTV-9000mini with up to 4 camera connections

4MP Monochrome

Model number Load resolution
(pixel)
Image transfer speed External dimensions
(W) x (H) x (D)
Standard mode High-speed mode
Monochrome VTC-400PM00-VI 2048x2048 26ms
(38fps)
6.7ms
(150fps)
29x29x55mm
1.1x1.1x2.2inch

※You can scroll horizontally.

3MP Monochrome/Color

Model number Load resolution
(pixel)
Image transfer speed External dimensions
(W) x (H) x (D)
Standard mode High-speed mode
Monochrome VTC-D030M00-SE 2048×1536 19ms
(52fps)
- 35x35x40.7mm
1.4x1.4x1.6inch
カラー VTC-D030C00-SE
Monochrome VTC-R030M00-SE 2048×1536 5.2ms
(193fps)
35x35x40.7mm
1.4x1.4x1.6inch
カラー VTC-R030C00-SE

※You can scroll horizontally.

2MP Monochrome/Color

Model number Load resolution
(pixel)
Image transfer speed External dimensions
(W) x (H) x (D)
Standard mode High-speed mode
Monochrome VTC-200PM00-VI 2048x1088 14ms
(70fps)
3.6ms
(280fps)
29x29x55mm
1.1x1.1x2.2inch
Color VTC-200PC00-VI

※You can scroll horizontally.

1.6MP Monochrome/Color

Model number Load resolution
(pixel)
Image transfer speed External dimensions
(W) x (H) x (D)
Standard mode High-speed mode
Monochrome VTC-D016M0A-SE 1440x1080 6.4ms(156fps) - 28x28x40mm
1.1x1.1x1.6inch
Color VTC-D016C0A-SE

※You can scroll horizontally.

1.3MP NIR

Model number Load resolution
(pixel)
Image transfer speed External dimensions
(W) x (H) x (D)
Standard mode High-speed mode
Monochrome VTC-D013R00-AD 1248x1024 7.8ms
(129fps)
- 58x58x90mm
2.3x2.3x3.5inch

※You can scroll horizontally.

All cameras offer partial support.
VT Digital cameras are original ViSCO digital cameras.
External dimensions do not include connectors.

VT Digital Camera cable

Product name Model number Connector shape
(camera side - unit side)
Length Shape
3m for Robot VTCC-3SSRN003H SDR-SDR 3m Straight
VTCC-3MSRN003H MDR-SDR
5m for Robot VTCC-3SSRN005H SDR-SDR 5m Straight
VTCC-3MSRN005H MDR-SDR
3m for Robot L-shaped VTCC-3SSRU003H SDR-SDR 3m L-shaped UP
5m for Robot L-shaped VTCC-3SSRU005H SDR-SDR 5m L-shaped UP
3m for Robot L-shaped VTCC-3SSRD003H SDR-SDR 3m L-shaped DOWN
5m for Robot L-shaped VTCC-3SSRD005H SDR-SDR 5m L-shaped DOWN

※You can scroll horizontally.

System configuration

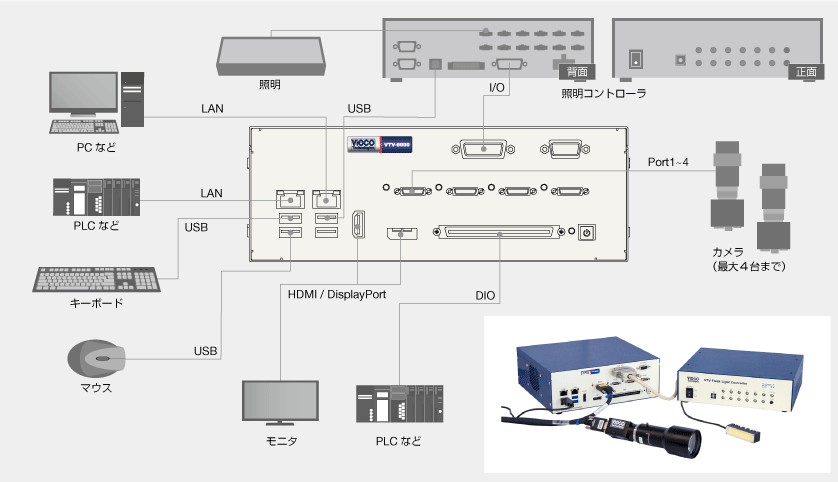

Connection with External Devices

VT Digital Camera・Camera cables
Camera Model No. Camera Type Camera cable Model No. Camera cable Type
VTC-R120M00-SE 12MP, Monochrome VTCC-3SSRN001H
VTCC-3SSRN003H
VTCC-3SSRN005H
VTCC-3SSRU003H
VTCC-3SSRU005H
VTCC-3SSRD003H
VTCC-3SSRD005H
VTCC-3SSRR003H
VTCC-3SSRR005H
VTCC-3SSRL003H
VTCC-3SSRL005H
straight/1m
straight/3m
straight/5m
L-shaped/UP/3m
L-shaped/UP/5m
L-shaped/DOWN/3m
L-shaped/DOWN/5m
L-shaped/RIGHT/3m
L-shaped/RIGHT/5m
L-shaped/LEFT/3m
L-shaped/LEFT/5m
VTC-R120C00-SE 12MP, Color
VTC-12MWM00-VI 12MP, Monochrome,M42 P1 mount
VTC-12MWC00-VI 12MP, Color,M42 P1 mount
VTC-R120M0 S-Series 12MP Monochrome Super Focusing Cameras
VTC-R090M00-SE 9MP, Monochrome
VTC-R090C00-SE 9MP, Color
VTC-R050M00-SE 5MP, Monochrome
VTC-R050C00-SE 5MP, Color
VTC-R050M0 S-Series 5MP Monochrome Super Focusing Cameras
VTC-R050C0 S-Series 5MP Color Super Focusing Cameras
VTC-D050M0A-SE 5MP, Monochrome
VTC-D050C0A-SE 5MP, Color
VTC-D050M0 S-Series 5MP Monochrome Super Focusing Cameras
VTC-D050C0 S-Series 5MP Color Super Focusing Cameras
VTC-400PM00-VI 4MP, Monochrome
VTC-R030M00-SE 3MP, Monochrome
VTC-R030C00-SE 3MP, Color
VTC-D030M00-SE 3MP, Monochrome
VTC-D030C00-SE 3MP, Color
VTC-200PM00-VI 2MP, Monochrome
VTC-200PC00-VI 2MP, Color
VTC-D016M0A-SE 1.6M, Monochrome
VTC-D016C0A-SE 1.6M, Color
VTC-D013R00-AD 1.3M, IR, AC power adapter required

※You can scroll horizontally.

Flash Light Controllers・Hardware trigger cable
Flash Light Controllers Model No. Flash Light Controllers Type Hardware trigger cable Model No. Hardware trigger cable Type
VTVFCV-0648-00
VTVFCV-1248-02
VTVFC-V-06-01
6 lighting connections
12 lighting connections, with link function
6 lighting connections
VTTC-M150-07A 0.7m
VTTC-M150-16A 1.6m
VTTC-MW151-16A 1.6m, 2-branch, connecting 2 controllers
VTTC-MF151-16A 1.6m, 4-branch, connecting 4 controllers

※You can scroll horizontally.

I/O cable
I/O cable Model No. I/O cable Type
VTIO-A96SN015E 1.5m, loose ends on one side
VTIO-A96SN030E 3m, loose ends on one side
VTIO-A96SN050E 5m, loose ends on one side
VTIO-B96SW130A 3m, connectors on both ends, Keyence PCL, MP3000/MP2000 series
VTIO-B96SW150A 3m, connectors on both ends, Keyence PCL, KV-7000/KV-5000/KV-3000 series
VTIO-B96SW530A 3m, connectors on both ends, YASKAWA controller, MP3000/MP2000 series
VTIO-B96SW550A 5m, connectors on both ends, YASKAWA controller, MP3000/MP2000 series
VTIO-B96SW415A 1.5m, connectors on both ends, OMRON PCL CJ series/NJ series/NX series
VTIO-B96SW430A 3m, connectors on both ends, OMRON PCL CJ series/NJ series/NX series
VTIO-B96SW450A 5m, connectors on both ends, OMRON PCL CJ series/NJ series/NX series

※You can scroll horizontally.

Encoder cable
Encoder cable Model No. Encoder cable Type
VTEC-M090-15A 1.5m
VTEC-M090-30A 3m

※You can scroll horizontally.

Frequently Asked Questions

QAbout how much does it cost?
A

The configuration and prices differ depending on the size of the object you want to inspect and the takt time. At ViSCO, we have a diverse lineup of image processing inspection systems, cameras, and other products to respond to the various needs of our customers. For details, please contact us here.

QHow do your products differ from those of other companies?
A

Examples would include our high-precision image processing technology, high-speed processing, and inspection algorithm, which rivals human capabilities.
ViSCO does not simply sell products. We propose visual inspection systems that can actually be used at production sites, including everything from optical system selection and automatic machine advice to after-sales follow-ups, and customers that have introduced our systems are generally satisfied enough to come back to us.
Every day, we strive to develop our image processing technology to bring it even closer to the capabilities of human eyes and satisfy even more customers.

QApproximately what is the minimum size of defects I can detect with your systems?
A

In the case of an optical system consisting of lenses and lighting generally available on the market, the minimum size of defects that can be detected is approximately 3 to 5 μm in diameter. However, this is affected by workpiece conditions, so it is necessary to confirm the actual precision and performance based on a sample test.

QDo I need any special knowledge to introduce an image processing inspection system?
A

ViSCO's image processing inspection systems have a reputation for being easy to use and set up even for first-time users.
We have a training program (optional) for customers who purchase our products, and we provide support to facilitate a smooth introduction.

Q I am considering purchasing a system, but are on-site tests available?
A

Yes.
We can have a sales representative visit you and conduct a test, or we can loan you the necessary machinery and materials free of charge. For details, please feel free to contact us here.

QCan you conduct a demonstration?
A

Yes.
We can have a sales representative visit you, or we can conduct a demonstration at our Tokyo head office or Osaka business office.
