NIR camera offers solution to "what needs to be inspected cannot be checked by human eyes". By visualizing inspection target's "difference in light reflection/absorption/ transmission characteristics, inspection of something invisible under human eyes can be done at higher accuracy. Conditions that had to be confirmed by actually touching or demounting can be visualized to judge defects.
Target models
VTV-9000ST VTV-9000miniR VTV-9000mini
Inspection that was challenging using a standard camera becomes feasible.
One sensor can detect the wavelength from the visible spectrum, 400nm, to the near infrared domain, 1700nm. Visible light illumination and IR lighting can be used together.

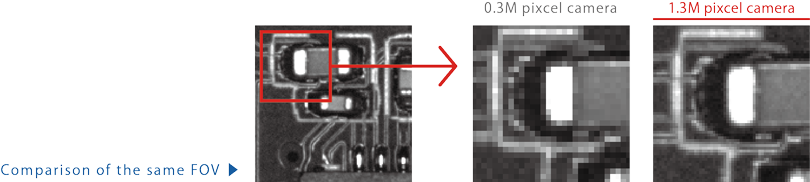

Offering nearly fourfold resolution against existing NIR cameras, enabling high-accuracy inspection with
Model number | Load resolution (pixel) |
Image transfer speed | External dimensions (W) x (H) x (D) |
||
---|---|---|---|---|---|
Standard mode | High-speed mode | ||||

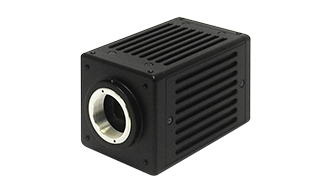

VTC-D013R00-AD | 1248x1024 | 7.8ms (129fps) |
- | 58x58x90mm |
We are an expert group in the field of visual inspections and image processing inspections. We are not just a manufacturer. Instead, we are a visual inspection and image processing inspection system manufacturer that combines knowledge of and experience related to image processing algorithms, optical technology, electronics, and machinery in order to provide comprehensive consulting as a development engineering company.
