Lighting Equipment
Lighting Controllers

Control When Lights Are Turned On,
Turned Off, or Dimmed in Real Time

Connecting a Lighting Controller to the VTV-9000 series makes it possible to turn on, turn off, or dim an LED light according to the image importing timing, enabling real-time control.

A Lighting Controller can be connected to the VTV-9000 via USB, and there are 4 and 12-channel types available depending on the number of connected LED lights.

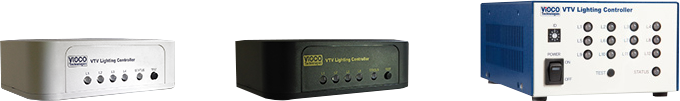

Lighting controllers

● 4-channel(VTVLCV-0412-**、VTVLCV-0424-** )

● 12-channel(VTVLC-V-12-**)

Hardware specifications

4-channel 12-channel
Model number VTVLCV-0412-** VTVLCV-0424-** VTVLC-V-12-**
Number of lighting
connections
4 4 12
Output voltage DC12V DC24V DC24V
Output capacity 25W 50W 150W
Link function - - maximum of 10 units

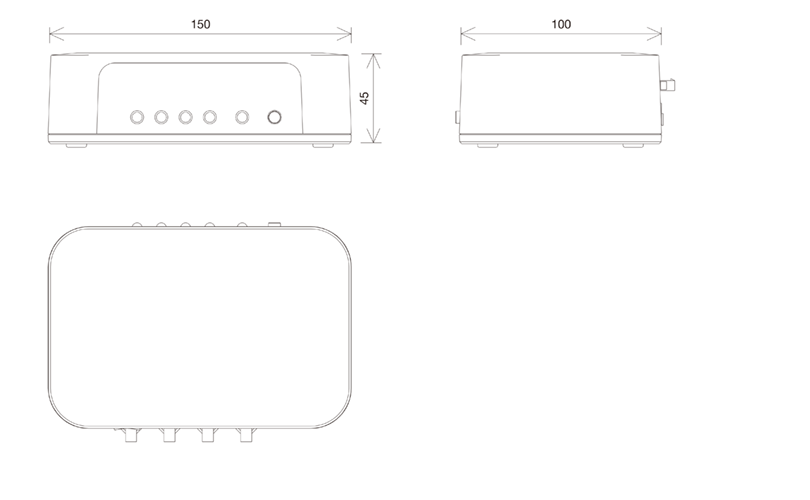

External dimensions 150(W)× 100(D)× 45(H)mm
5.9(W)× 3.9(D)× 1.8(H)inch*1
150(W)× 100(D)× 45(H)mm
5.9(W)× 3.9(D)× 1.8(H)inch*1

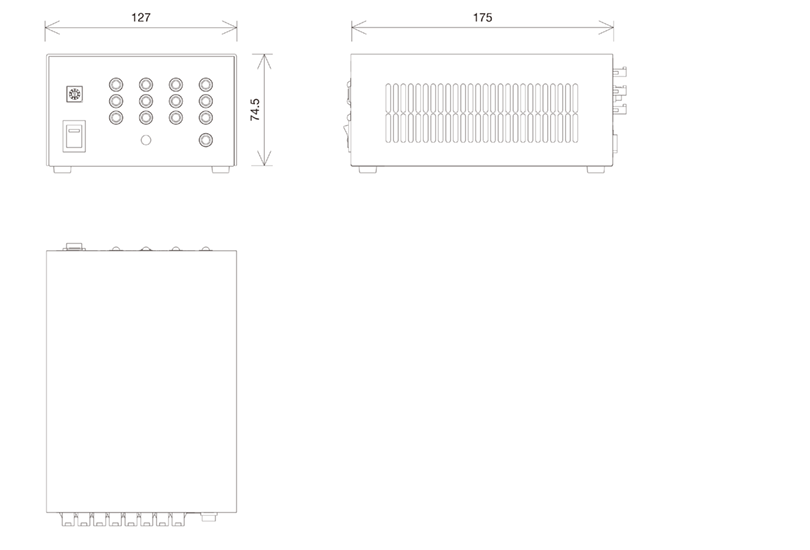

127(W)× 175(D)× 74.5(H)mm
5(W)× 6.9(D)× 2.9(H)inch*1
Weight 270g 270g 750g
Power consumption 30W or less 60W or less 180W or less

※You can scroll horizontally.

*1 Values do not include protruding parts
* It does not include projections in external dimensions.
