Lighting Equipment

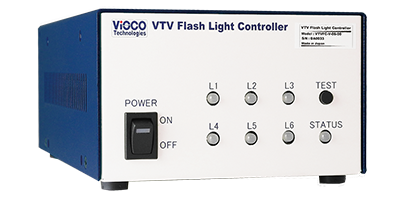

Flash Light Controllers

Strobe Control
by Flash Light Controllers

Connecting a Flash Light Controller to the VTV-9000 series makes it possible to easily use strobe-lighting and hardware-trigger-input functions.

Drawings showing external dimensions

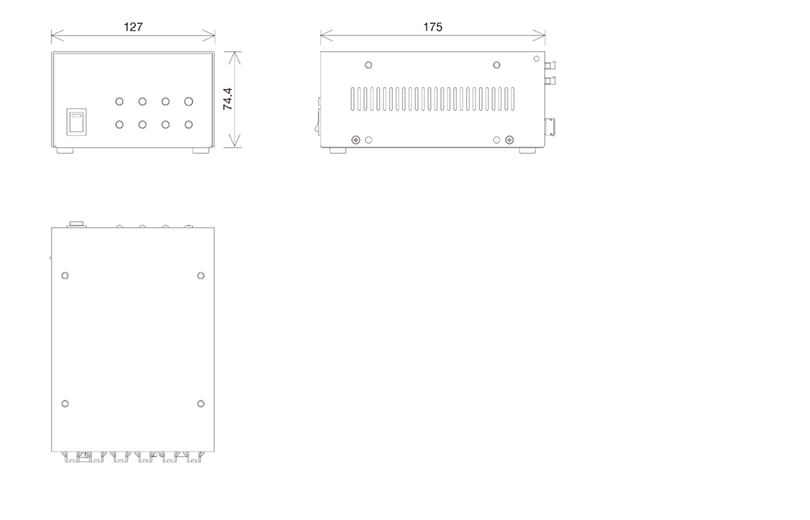

● 6-channel( VTVFC-V-06-** )

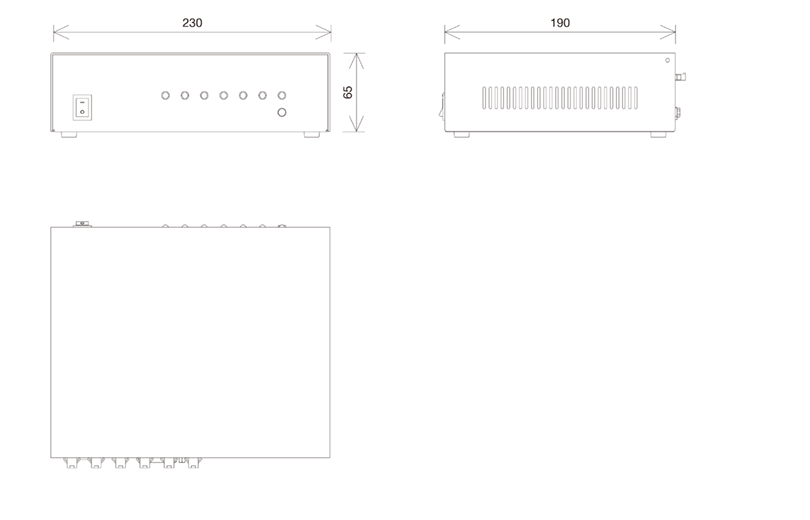

● 6-channel( VTVFCV-0648-** )

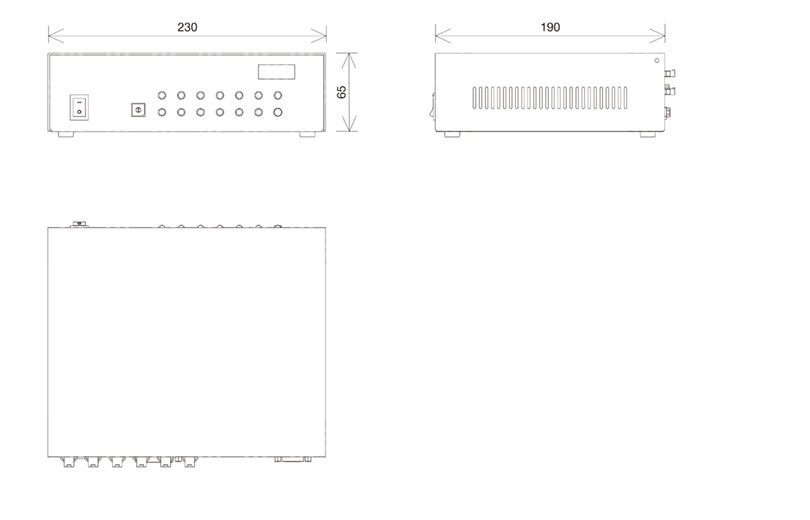

● 12-channel( VTVFCV-1248-** )

Hardware specifications

6-channel 12-channel
Model number VTVFC-V-06-** VTVFCV-0648-** VTVFCV-1248-**
Number of lighting connections 6 6 12
Input voltage DC24V DC24V DC24V
Rated output When only O.D is selected: output current of 3.75 A max
When only 24 V is selected: output power of 156 W max O.D+
When mixing 24 V: output current of 3.25 A max and output power of 156 W max
48 V O.D: output current of 10 A max per channel and total output current of 50 A max 48 V O.D: output current of 10 A max per channel and total output current of 50 A max
Link function - - Maximum of 10 units
External dimensions 127(W)× 175(D)× 79.4(H)mm
5(W)× 6.9(D)× 3.1(H)inch*1
230(W)× 190(D)× 70(H)mm
9.1(W)× 7.5(D)× 2.6(H)inch*1
230(W)× 190(D)× 70(H)mm
9.1(W)× 7.5(D)× 2.6(H)inch*1
Weight 775g 1230g 1320g
Power consumption 160W以下 300W 300W

※You can scroll horizontally.

*1 Values do not include protruding parts
* It does not include projections in external dimensions.
