Peripheral Equipment
Cameras

Extensive lineup of cameras
suitable for various

We offer the industry's widest selection of cameras supporting 3.6 ms (2M pixels) high-speed cameras,as well as 25M and 65M-pixel high-resolution cameras,

  • For ultra-high-resolution inspections

    High-speed mode available
    65MP
    9,344 × 7,000 pixels
    111ms（9fps）※High-speed mode only
    For inspections requiring very fine detection or inspections of large parts.
  • For high-speed processing ＆ high-resolution inspections
    High-speed mode available
    12MP
    4,080 × 3,000 pixels
    19ms（54fps）
    Suitable for cosmetic inspections that require high-speed processing for large parts.
  • Suitable for cosmetic inspections or larger parts that require high-speed processing
    High-speed mode available
    5MP
    2,448 × 2,048 pixels
    7.6ms（132fps）
    For multiple inspections with changes in lighting and for inspections of stitched images.
  • Suitable for horizontally long parts


    High-speed mode available
    2MP
    2,048 × 1,088 pixels
    3.6ms（280fps）
    For inspections of long products such as connectors.

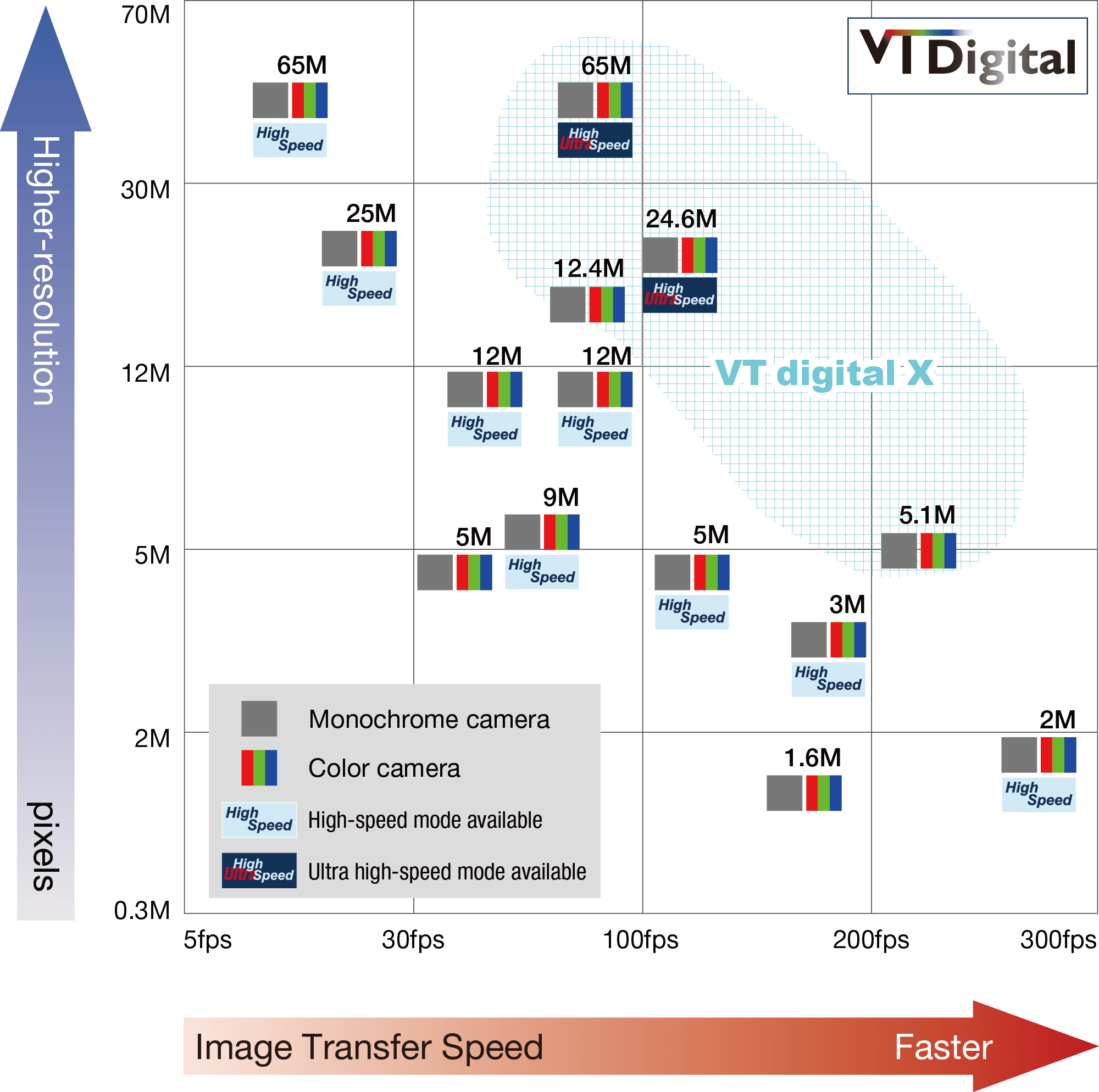

Extensive camera variation from high-speed to high-resolution

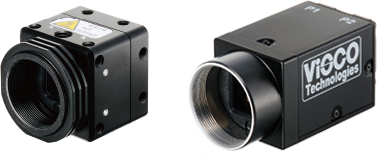

VT Digital cameras

Models:
VTV-9000ST　VTV-9000miniR　VTV-9000mini
High-speed supporting models
VTV-9000ST with up to 2 high-speed camera connections or up to 4 high-speed camera connections
VTV-9000miniR

65MP Monochrome/Color

Model number Load resolution
（pixel）		 Image transfer speed External dimensions
(W) x (H) x (D)
Standard mode High-speed mode
Monochrome VTC-R650M00-VI 9344x7000 - 111ms
(9fps)		 55x55x45mm
2.2x2.2x1.8inch
カラー VTC-R650C00-VI

※You can scroll horizontally.

25MP Monochrome/Color

Model number Load resolution
（pixel）		 Image transfer speed External dimensions
(W) x (H) x (D)
Standard mode High-speed mode
Monochrome VTC-R250M00-VI 5120x5120 - 46ms
(22fps)		 55x55x45mm
2.2x2.2x1.8inch
カラー VTC-R250C00-VI
Monochrome VTC-25MCM00-NV 40ms
(25fps)		 68x68x80mm
2.7x2.7x3.1inch

※You can scroll horizontally.

12MP Monochrome/Color

Model number Load　resolution
（pixel）		 Image transfer speed External dimensions
(W) x (H) x (D)
Standard mode High-speed mode
Monochrome VTC-R120M00-SE 4080x3000 67ms(15fps)
77ms(13fps)*1		 19ms
(54fps)		 35x35x40.7mm
1.4x1.4x1.6inch
Color VTC-R120C00-SE
Monochrome VTC-12MWM00-VI 4096x3072 91ms
(11fps)		 24ms
(42fps)		 55x55x30mm
2.2x2.2x1.2inch
Color VTC-12MWC00-VI

※You can scroll horizontally.

*1　When connected to a VTV-9000mini with up to 4 camera connections

9MP Monochrome/Color

Model number Load　resolution
（pixel）		 Image transfer speed External dimensions
(W) x (H) x (D)
Standard mode High-speed mode
Monochrome VTC-R090M00-SE 4080x2160 50ms(20fps)
56ms(18fps)*1		 14ms
(74fps)		 35x35x40.7mm
1.4x1.4x1.6inch
Color VTC-R090C00-SE

※You can scroll horizontally.

When connected to a VTV-9000mini with up to 4 camera connectionsVTV-9000mini

5MP Monochrome/Color

Model number Load　resolution
（pixel）		 Image transfer speed External dimensions
(W) x (H) x (D)
Standard mode High-speed mode
Monochrome VTC-R050M00-SE 2448x2048 29ms(35fps)
30ms(33fps)*1		 7.6ms
(132fps)		 35x35x40.7mm
1.4x1.4x1.6inch
Color VTC-R050C00-SE
Monochrome VTC-D050M0A-SE 2448x2048 29ms(35fps)
30ms(33fps)*1		 - 35x35x40.7mm
1.4x1.4x1.6inch
Color VTC-D050C0A-SE

※You can scroll horizontally.

*1　When connected to a VTV-9000mini with up to 4 camera connections

4MP Monochrome

Model number Load　resolution
（pixel）		 Image transfer speed External dimensions
(W) x (H) x (D)
Standard mode High-speed mode
Monochrome VTC-400PM00-VI 2048x2048 26ms
(38fps)		 6.7ms
(150fps)		 29x29x55mm
1.1x1.1x2.2inch

※You can scroll horizontally.

3MP Monochrome/Color

Model number Load　resolution
（pixel）		 Image transfer speed External dimensions
(W) x (H) x (D)
Standard mode High-speed mode
Monochrome VTC-D030M00-SE 2048×1536 19ms
(52fps)		 - 35x35x40.7mm
1.4x1.4x1.6inch
カラー VTC-D030C00-SE
カラー VTC-R030T00-JC - 18ms
(55fps)		 44x44x74mm
1.7x1.7x2.9inch
Monochrome VTC-R030M00-SE 2048×1536 19ms
(52fps)		 5.2ms
(193fps)		 35x35x40.7mm
1.4x1.4x1.6inch
カラー VTC-R030C00-SE

※You can scroll horizontally.

2MP Monochrome/Color

Model number Load　resolution
（pixel）		 Image transfer speed External dimensions
(W) x (H) x (D)
Standard mode High-speed mode
Monochrome VTC-200PM00-VI 2048x1088 14ms
(70fps)		 3.6ms
(280fps)		 29x29x55mm
1.1x1.1x2.2inch
Color VTC-200PC00-VI

※You can scroll horizontally.

1.6MP Monochrome/Color

Model number Load　resolution
（pixel）		 Image transfer speed External dimensions
(W) x (H) x (D)
Standard mode High-speed mode
Monochrome VTC-D016M0A-SE 1440x1080 6.4ms(156fps)
- 28x28x40mm
1.1x1.1x1.6inch
Color VTC-D016C0A-SE
カラー VTC-R016T00-JC - 7.9ms
(126fps)		 44x44x74mm
1.7x1.7x2.9inch

※You can scroll horizontally.

1.3MP NIR

Model number Load　resolution
（pixel）		 Image transfer speed External dimensions
(W) x (H) x (D)
Standard mode High-speed mode
Monochrome VTC-D013R00-AD 1248x1024 7.8ms
(129fps)		 - 58x58x90mm
2.3x2.3x3.5inch

※You can scroll horizontally.

All cameras offer partial support.
VT Digital cameras are original ViSCO digital cameras.
External dimensions do not include connectors.

VT Digital E cameras

Models
VTV-9000C　VTV-9000U

5MP Monochrome/Color

Model number Load　resolution
（pixel）		 Image transfer speed External dimensions
(W) x (H) x (D)
Monochrome VTC-E050M00-SE 2448x2048 48ms
(21fps)		 35x35x53.4mm
1.4x1.4x2.1inch
Color VTC-E050C00-SE 35x35x53.7mm
1.4x1.4x2.1inch
モノクロ VTC-E050M00-SN 29x29x53mm
1.1x1.1x2.0inch
カラー VTC-E050C00-SN

※You can scroll horizontally.

3MP Monochrome/Color

Model number Load　resolution
（pixel）		 Image transfer speed External dimensions
(W) x (H) x (D)
Monochrome VTC-E030M00-SE 2048x1536 30ms
(33fps)		 35x35x53.4mm
1.4x1.4x2.1inch
Color VTC-E030C00-SE 35x35x53.7mm
1.4x1.4x2.1inch
Monochrome VTC-E030M00-SN 29ms
(35fps)		 29x29x53mm
1.1x1.1x2.0inch
Color VTC-E030C00-SN

※You can scroll horizontally.

2MP Monochrome/Color

Model number Load　resolution
（pixel）		 Image transfer speed External dimensions
(W) x (H) x (D)
Monochrome VTC-200EM10-SE 1616x1236 33ms
(30fps)		 35x35x55.9mm
1.4x1.4x2.2inch
Color VTC-200EC10-SE

※You can scroll horizontally.

1.6MP Monochrome/Color

Model number Load　resolution
（pixel）		 Image transfer speed External dimensions
(W) x (H) x (D)
Monochrome VTC-E016M00-SE 1440x1080 14ms
(71fps)		 35x35x53.4mm
1.4x1.4x2.1inch
Color VTC-E016C00-SE 35x35x53.7mm
1.4x1.4x2.1inch
Monochrome VTC-E016M00-SN 14ms
(69fps)		 29 x 29 x 53mm
1.1x1.1x2.0inch
Color VTC-E016C00-SN
Monochrome VTC-E016M00-SN
（Binning Mode）		 720x540 6.5ms
（153fps）

※You can scroll horizontally.

All cameras support partial resolution.
VT Digital E cameras are original ViSCO digital cameras.
External dimensions do not include connectors.
