Electronic Parts
Development of Many Inspection Tools
Suitable for the Special Shapes of
Electronic Parts

Our applications are highly regarded in the electronic parts industry.
ViSCO's optical technology makes highly difficult inspections possible.

Inspection Examples

Pressed-product width, dimension,
and bending inspections

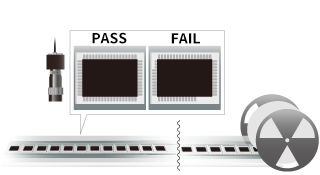

Chip-part scratch, dirt,
and crack inspections

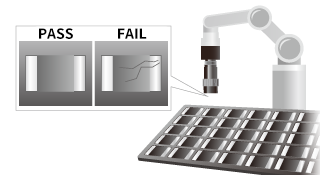

Chip-capacitor scratch
and crack inspections

In-tape dirt and
chip inspections

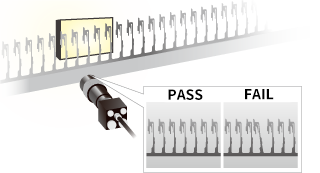

Pin burr and
pitch inspections

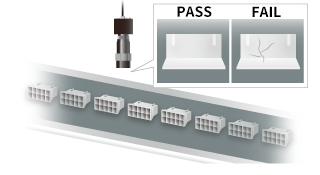

Housing burr, chip, and
foreign matter inspections

Post-pin-insertion
pitch and
coplanarity inspections

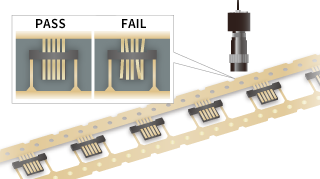

Post-one-piece-molding pin bending
and resin overlap inspections

There are also many examples that are not shown here.
If you have any questions about the feasibility of inspections with our company's products, etc.,
please feel free to send us an inquiry.

Customer feedback

Only ViSCO can handle inspections that are this hard (high resolution, high precision).
With the VTV-9000, setting up is easy, and even inspections that tend to be complex can be finished with few tools. Image launching now takes a lot less time and fewer work-hours than it used to. It's great!
Because an integrated image can be used for calibration, multi-cavity changes enabling consistent inspection precision can be quickly handled.

Possible Inspection Examples

Lead inspections

The lead parts can be registered as a model
to detect each lead during a search.

Inspection target parts

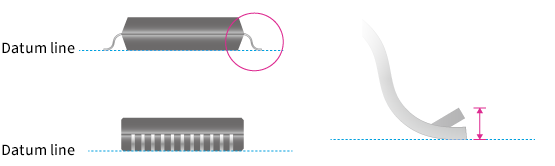

Coplanarity inspections

These are inspections during which a datum line is specified and whether the leads are within the corresponding tolerance is checked.
An image is captured from the side to conduct an inspection and check for leads that are sticking up.

Mold inspections

These are inspections during which the characters on the front surface of a mold are inspected, and the surface is inspected for scratches.
