Are you struggling with problems like these?
I want to simultaneously
inspect images that
have different
focal points.
I want to inspect
a front surface that
causes diffuse reflection.
I can't conduct an inspection
due to periodic
noise in the image.
ViSCO Technologies can help!

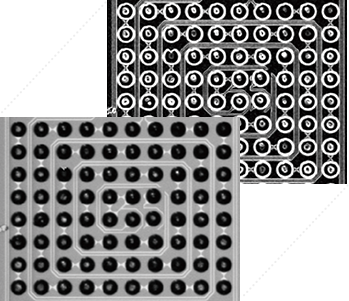

Images with different focal points are inspected at the same time.
Images with different focal points are inspected at the same time.
- Camera 1: Focused on chip
- Camera 2: Focused on board
Example of inter-image operation
Inter-image operation references each image
Unfocused sections of
each image are masked
Synthesis mode is executed
to synthesize an image
Our filter tool comes with an abundance of image filters
The VTV-9000 series has over 30 types of image lters. You can set the settings while checking the original image.
Our advanced blob inspection tool is capable of inspecting work with indentations or scratches.
In addition, multiple image lters can easily be combined.
Eliminates period irregularity
Stain extracted from grid pattern
Example of execution with the shading correction filter
The image filter tool allows you to easily add and delete image filters while checking the original image, so you can easily conduct test runs.
Images created can be used as input images for blob inspections, measurement editing, DefFinder, character inspections, and more.
Original image
(light is reflecting diffusely
because of the cellophane)
Shading is made uniform by the
shading correction filter
The inspection is made even easier
by using contrast emphasis
Examples of image filters
Original image
Sobel
(extracts edge portions)
Line thinning
(thins the edges even more)
8-direction dilation
8-direction erosion
Edge emphasis
Contrast emphasis
Low-pass (gradation)
Change of brightness
Application(General-purpose inspection tools)
