TSCDefFinder
Generate an image suitable for inspection
by switching multiple lightings

TSCDefFinder

Acquire images captured at different timing while switching multiple lightings.
TSCDefFinder, a tool inspired by the difference between multiple images that show chronological changes, is used to generate images suitable for inspection.
A crack that could not be confirmed using a lighting from a single direction can be visualized and detected as a defect.

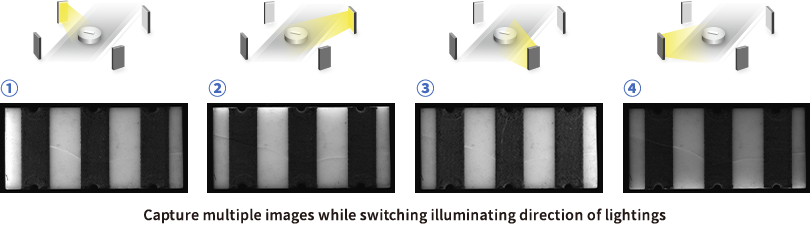

Capture multiple images while switching illuminating direction of lightings

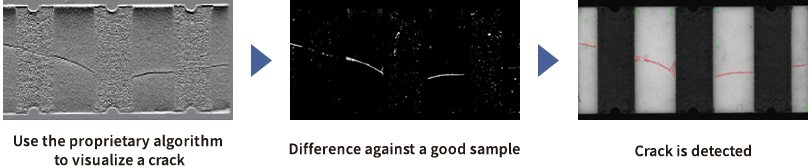

Use the proprietary algorithm to visualize a crack Difference against a good sample Crack is detected

Lighting of any color or position can be used for inspection as far as a defect can become visible

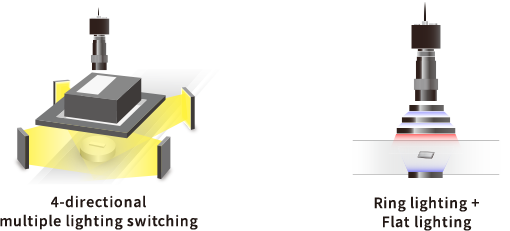

4-directional multiple lighting switching Ring lighting + Flat lighting

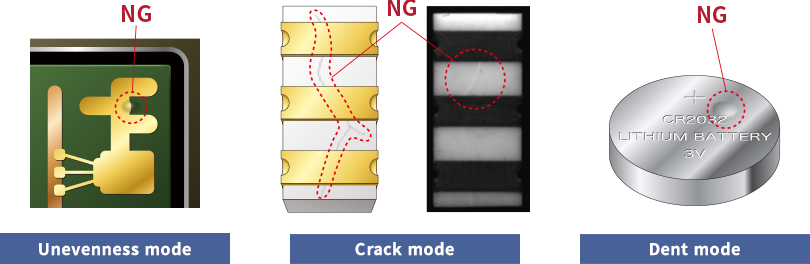

Select a defect mode based on defect shape

Unevenness mode Crack mode Dent mode

Usage Example of TSCDefFinder

Introduction to our company

As an expert group in the field of visual inspections and image processing inspections, we provide products that continue to lead the industry.

We are an expert group in the field of visual inspections and image processing inspections. We are not just a manufacturer. Instead, we are a visual inspection and image processing inspection system manufacturer that combines knowledge of and experience related to image processing algorithms, optical technology, electronics, and machinery in order to provide comprehensive consulting as a development engineering company.
