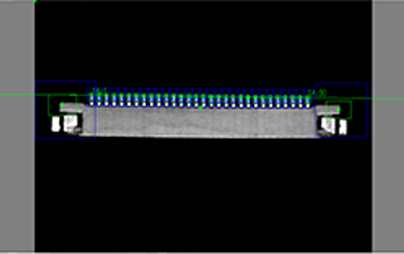

Connector Inspection
An Inspection of items necessary for
connector production highly
regarded by the industry.

Our Connector Inspection tool was designed to meet the highest
evaluation requirements within the electrical connector industry.
This powerful tool is easy to set up and use, ensuring there are
no variations in the inspected work.

Are you struggling with problems like these?

I'm looking for an
inspection system with
a lot of 'items' is vague,
consider changing. 'tools'
'tools for inspecting
connectors'
I want to simplify
my settings,
redundant, consider
deleting.

I'm looking for an inspection
system that will
work even if the number
of pins changes.
ViSCO Technologies can help!

ViSCO's system covers all the needs of companies producing electrical connectors

The VTV-9000 series offers the full lineup of inspection items necessary for connector production and can be simply setup by selecting checkboxes. Di erent users can easily set the same settings.

Designed to meet the highest evaluation requirements within the connector industry
  • ①More than 70 items necessary for connector inspection
  • ②Extensive pin array variations
  • ③High detection performance
  • ④Misalignment inspection can be easily setup
  • ⑤Data sharing function
  • ⑥Correction function useful for correlation with actual measured values
  • ⑦Synthesis operation and image synthesis from images acquired through segmented acquisition
  • ⑧Specialized cameras and lighting for connectors

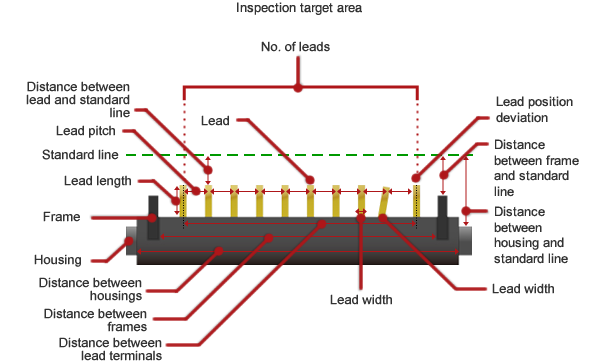

Offers more than 70 items necessary for connector inspection

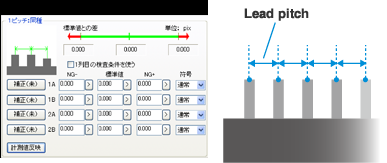

Lead pitch measurement (same type)

Lead pitch measurement (same type)

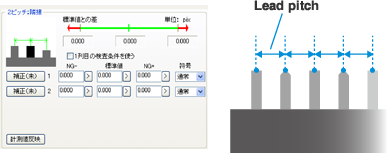

Lead pitch measurement (adjoining)

Measures the distance in the pitch direction between detection points (Type A - Type B) for adjoining leads.

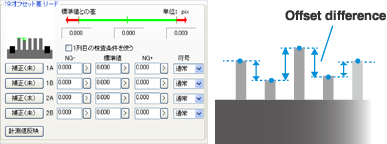

Lead offset difference measurement

Measures the difference in offset between detection points for adjoining leads of the same type.

Extensive pin array variations

Number of rows: One or two rows (*Three or more rows can also be supported by repeating these).
Model (pin shapes) types: One type, two types, one type with one inverted
Arrays: Pairs, alternate, zigzag

Extensive pin array variations

High detection performance

・ Recognition performance:
Recognition is possible even when
the background is complex
・ Accuracy: 1/4 to 1/2 pixel
level repeatable accuracy
・ High-speed processing:
0.2 to 0.5 msec per search

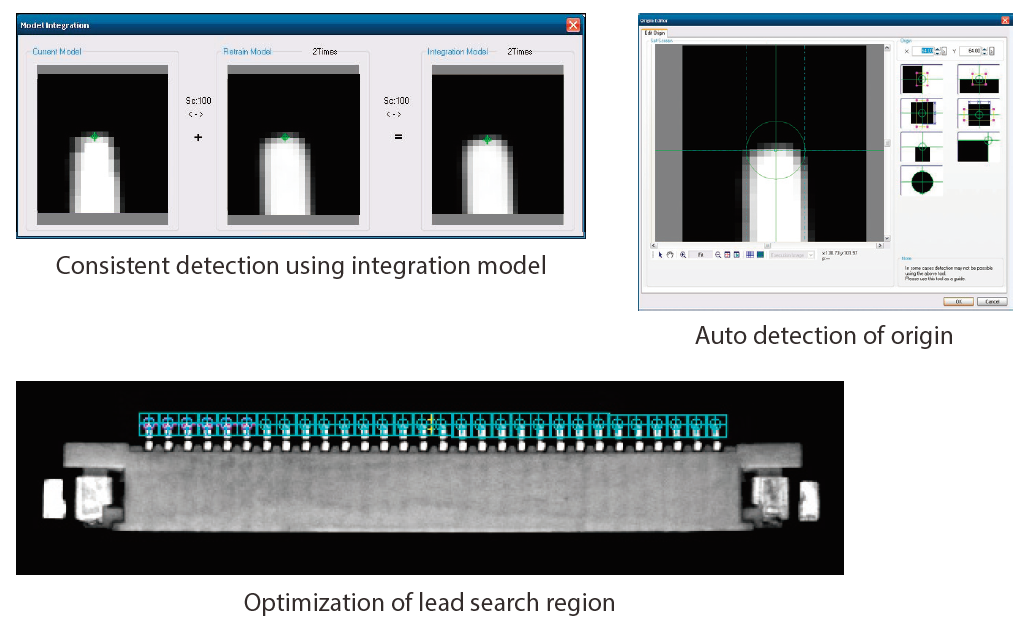

・ Consistent detection using
integration model
・ Auto detection of origin
・ Optimization of lead search region

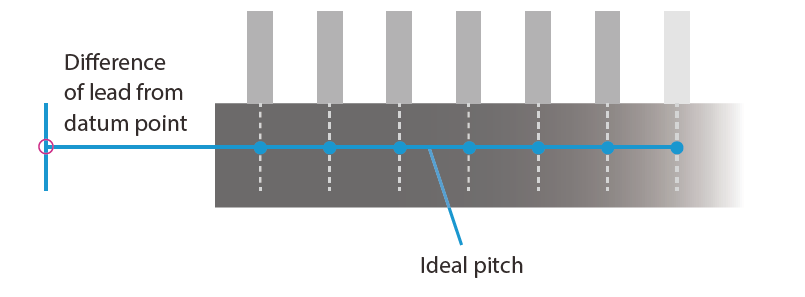

Misalignment inspection can be easily setup

Misalignment inspection is an important inspection in connector production. In this inspection which veri es whether the positions of the leads and pins are correctly aligned, you simply need to set the datum point, distance of lead from datum point, and ideal pitch to start an inspection.

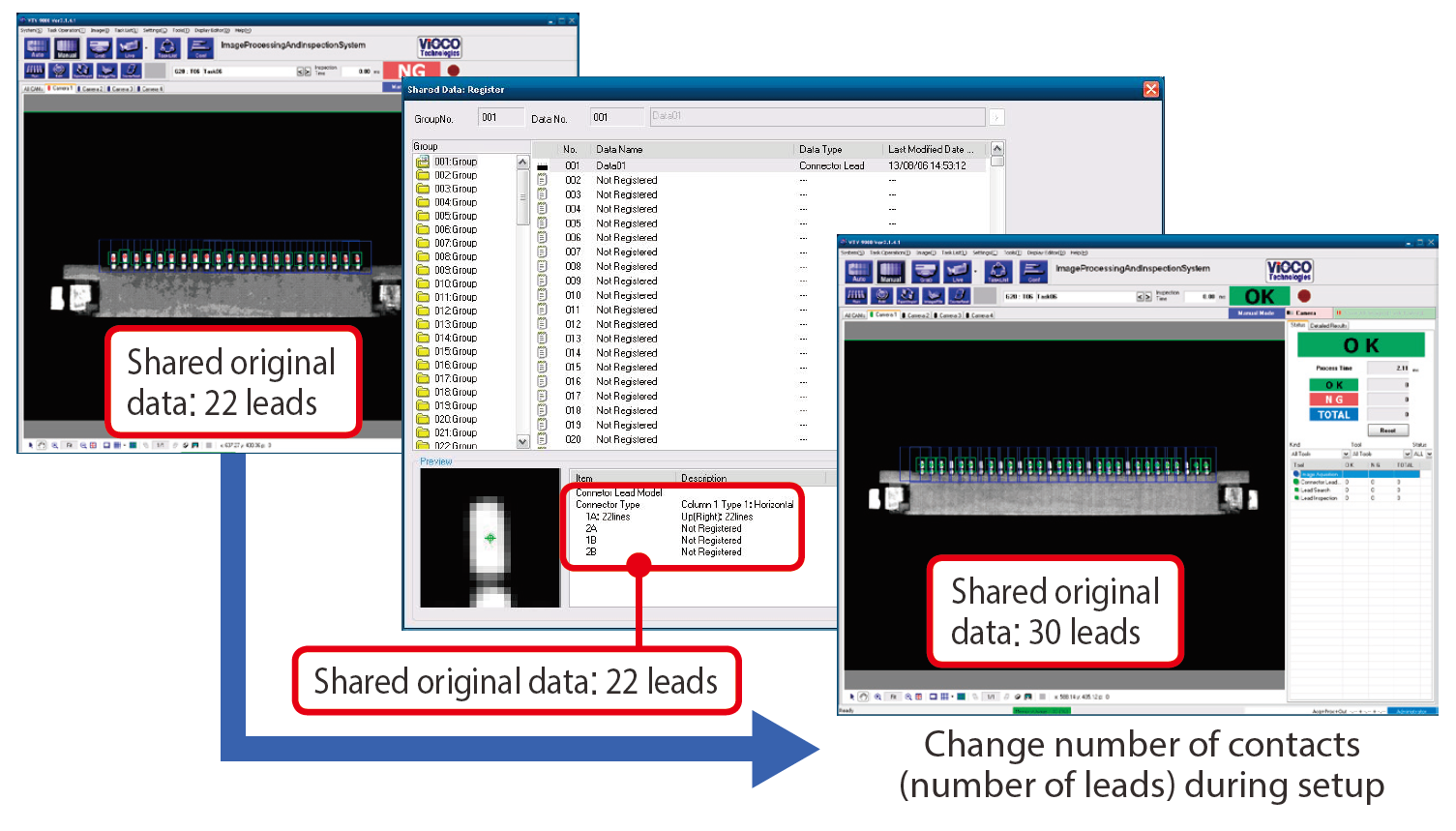

Data sharing function

By using the data sharing function, inspection of multiple contacts is easy. If the connector shape of the inspection target is the same, and only the number of leads is different, by acquiring shared data and simply changing the number of leads and some other inspection frames, inspection is possible. In addition, since shared data is managed collectively, changes in parameters and trained models are applied system-wide.

Correction function useful for correlation with actual measured values

Even if calibration is performed accurately, and an optical system that is affected minimally by distortion and the like is prepared, the values detected in image processing will not exactly match actual dimension values.

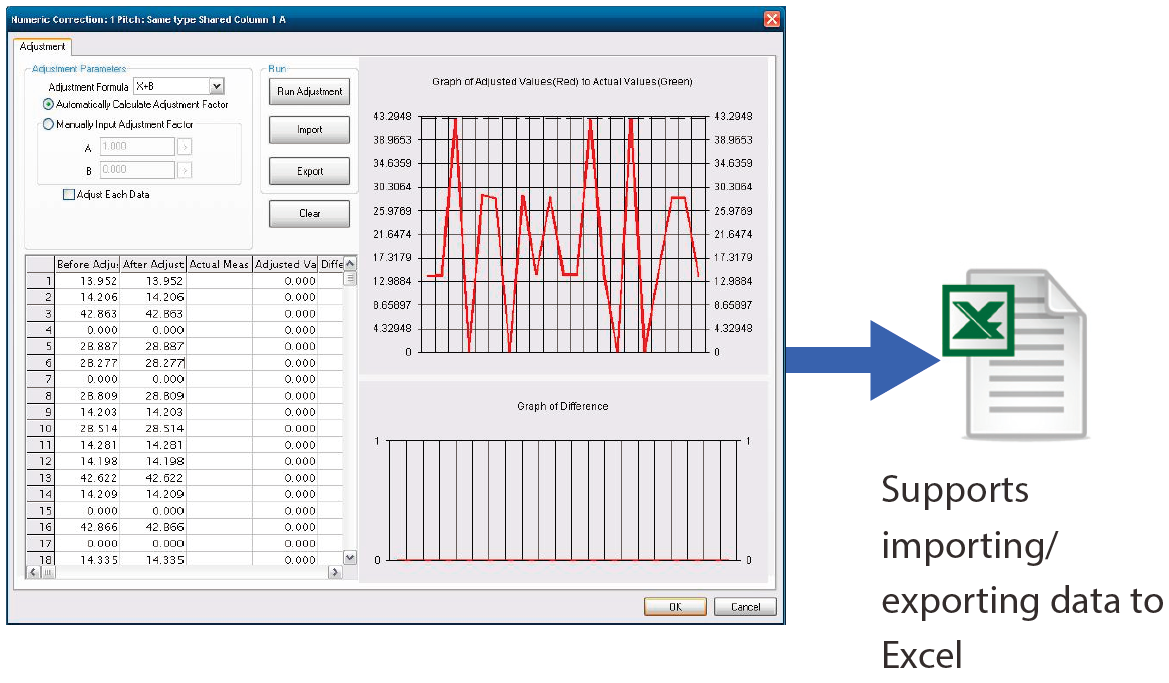

Numerical Correction is a function that corrects values detected in image processing so that they match actual dimension values. However, this function cannot be delivered unless the repeatable accuracy of image processing detection is high. This function is included in the VTV-9000 series because we are absolutely confident of VTV-9000's track record in delivering repeatable accuracy.

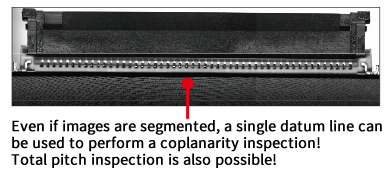

Synthesis operation and image synthesis from images acquired through segmented acquisition

Total pitch inspection, and coplanarity inspection using a common datum line is possible.

Specialized cameras and lighting for connectors



We offer horizontally long cameras and lighting which are optimal for acquiring images of connectors.
