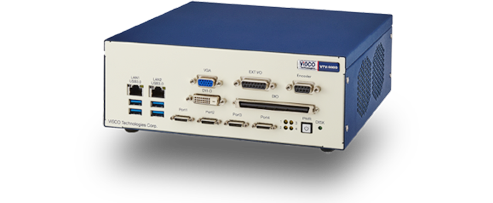

The VTV-9000mini features an original compact ViSCO chassis. It also has a uniquely designed board and an even more robust chassis, and it offers high-speed/high-performance while being super-compact.
〈Model lineup〉
4-camera setup
| Model number | V9KTDPL7-4MV |
|---|---|
| Camera mode | Standard（mixed use of cameras with different pixel counts supported） |
| Maximum number of camera connections | 4 |

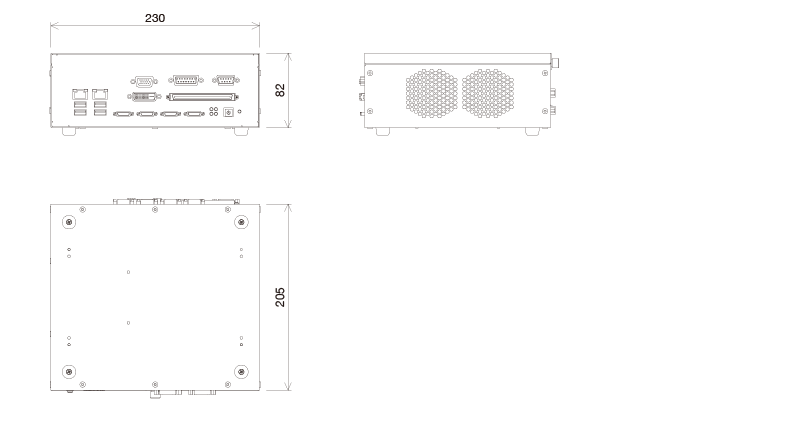

| External dimensions | 230（W）× 205（D）× 82（H）mm 9.1（W）× 8.1（D）× 3.2（H）inch |
| Weight | 2.7kg |
| Power consumption | ＜ 144 W |
※You can scroll horizontally.
| Model number | Load resolution
（pixel） |
Image transfer speed | External dimensions (W) x (H) x (D) |
||
|---|---|---|---|---|---|
| Standard mode | High-speed mode | ||||
 |
VTC-R120M00-SE | 4080x3000 | 67ms(15fps) 77ms(13fps)*1 |
19ms (54fps) |
35x35x40.7mm 1.4x1.4x1.6inch |
 |
VTC-R120C00-SE | ||||
|
VTC-12MWM00-VI | 4096x3072 | 91ms (11fps) |
24ms (42fps) |
55x55x30mm 2.2x2.2x1.2inch |
|
VTC-12MWC00-VI | ||||
※You can scroll horizontally.
*1 When connected to a VTV-9000mini with up to 4 camera connections
| Model number | Load resolution
（pixel） |
Image transfer speed | External dimensions (W) x (H) x (D) |
||
|---|---|---|---|---|---|
| Standard mode | High-speed mode | ||||
|
VTC-R090M00-SE | 4080x2160 | 50ms(20fps) 56ms(18fps)*1 |
14ms (74fps) |
35x35x40.7mm 1.4x1.4x1.6inch |
|
VTC-R090C00-SE | ||||
※You can scroll horizontally.
When connected to a VTV-9000mini with up to 4 camera connectionsVTV-9000mini| Model number | Load resolution
（pixel） |
Image transfer speed | External dimensions (W) x (H) x (D) |
||
|---|---|---|---|---|---|
| Standard mode | High-speed mode | ||||
|
VTC-R050M00-SE | 2448x2048 | 29ms(35fps) 30ms(33fps)*1 |
7.6ms (132fps) |
35x35x40.7mm 1.4x1.4x1.6inch |
|
VTC-R050C00-SE | ||||
|
VTC-D050M0A-SE | 2448x2048 | 29ms(35fps) 30ms(33fps)*1 |
- | 35x35x40.7mm 1.4x1.4x1.6inch |
|
VTC-D050C0A-SE | ||||
※You can scroll horizontally.
*1 When connected to a VTV-9000mini with up to 4 camera connections
| Model number | Load resolution
（pixel） |
Image transfer speed | External dimensions (W) x (H) x (D) |
||
|---|---|---|---|---|---|
| Standard mode | High-speed mode | ||||
|
VTC-400PM00-VI | 2048x2048 | 26ms (38fps) |
6.7ms (150fps) |
29x29x55mm 1.1x1.1x2.2inch |
※You can scroll horizontally.
| Model number | Load resolution
（pixel） |
Image transfer speed | External dimensions (W) x (H) x (D) |
||
|---|---|---|---|---|---|
| Standard mode | High-speed mode | ||||
|
VTC-D030M00-SE | 2048×1536 | 19ms (52fps) |
- | 35x35x40.7mm 1.4x1.4x1.6inch |
|
VTC-D030C00-SE | ||||
|
VTC-R030M00-SE | 2048×1536 | 5.2ms (193fps) |
35x35x40.7mm 1.4x1.4x1.6inch |
|
|
VTC-R030C00-SE | ||||
※You can scroll horizontally.
| Model number | Load resolution
（pixel） |
Image transfer speed | External dimensions (W) x (H) x (D) |
||
|---|---|---|---|---|---|
| Standard mode | High-speed mode | ||||
|
VTC-200PM00-VI | 2048x1088 | 14ms (70fps) |
3.6ms (280fps) |
29x29x55mm 1.1x1.1x2.2inch |
|
VTC-200PC00-VI | ||||
※You can scroll horizontally.
| Model number | Load resolution
（pixel） |
Image transfer speed | External dimensions (W) x (H) x (D) |
||
|---|---|---|---|---|---|
| Standard mode | High-speed mode | ||||
|
VTC-D016M0A-SE | 1440x1080 | 6.4ms(156fps) | - | 28x28x40mm 1.1x1.1x1.6inch |
|
VTC-D016C0A-SE | ||||
※You can scroll horizontally.
※You can scroll horizontally.
| Model number | Load resolution
（pixel） |
Image transfer speed | External dimensions (W) x (H) x (D) |
||
|---|---|---|---|---|---|
| Standard mode | High-speed mode | ||||
 |
VTC-D013R00-AD | 1248x1024 | 7.8ms (129fps) |
- | 58x58x90mm 2.3x2.3x3.5inch |
※You can scroll horizontally.
All cameras offer partial support.
VT Digital cameras are original ViSCO digital cameras.
External dimensions do not include connectors.
| Product name | Model number | Connector shape (camera side - unit side) |
Length | Shape |
|---|---|---|---|---|
| 3m for Robot | VTCC-3SSRN003H | SDR-SDR | 3m | Straight |
| VTCC-3MSRN003H | MDR-SDR | |||
| 5m for Robot | VTCC-3SSRN005H | SDR-SDR | 5m | Straight |
| VTCC-3MSRN005H | MDR-SDR | |||
| 3m for Robot L-shaped | VTCC-3SSRU003H | SDR-SDR | 3m | L-shaped UP |
| 5m for Robot L-shaped | VTCC-3SSRU005H | SDR-SDR | 5m | L-shaped UP |
| 3m for Robot L-shaped | VTCC-3SSRD003H | SDR-SDR | 3m | L-shaped DOWN |
| 5m for Robot L-shaped | VTCC-3SSRD005H | SDR-SDR | 5m | L-shaped DOWN |
※You can scroll horizontally.
| Camera Model No. | Camera Type | Camera cable Model No. | Camera cable Type |
|---|---|---|---|
| VTC-R120M00-SE | 12MP, Monochrome | VTCC-3SSRN001H VTCC-3SSRN003H VTCC-3SSRN005H VTCC-3SSRU003H VTCC-3SSRU005H VTCC-3SSRD003H VTCC-3SSRD005H VTCC-3SSRR003H VTCC-3SSRR005H VTCC-3SSRL003H VTCC-3SSRL005H |
straight/1m straight/3m straight/5m L-shaped/UP/3m L-shaped/UP/5m L-shaped/DOWN/3m L-shaped/DOWN/5m L-shaped/RIGHT/3m L-shaped/RIGHT/5m L-shaped/LEFT/3m L-shaped/LEFT/5m |
| VTC-R120C00-SE | 12MP, Color | ||
| VTC-12MWM00-VI | 12MP, Monochrome,M42 P1 mount | ||
| VTC-12MWC00-VI | 12MP, Color,M42 P1 mount | ||
| VTC-R120M0 S-Series | 12MP Monochrome Super Focusing Cameras | ||
| VTC-R090M00-SE | 9MP, Monochrome | ||
| VTC-R090C00-SE | 9MP, Color | ||
| VTC-R050M00-SE | 5MP, Monochrome | ||
| VTC-R050C00-SE | 5MP, Color | ||
| VTC-R050M0 S-Series | 5MP Monochrome Super Focusing Cameras | ||
| VTC-R050C0 S-Series | 5MP Color Super Focusing Cameras | ||
| VTC-D050M0A-SE | 5MP, Monochrome | ||
| VTC-D050C0A-SE | 5MP, Color | ||
| VTC-D050M0 S-Series | 5MP Monochrome Super Focusing Cameras | ||
| VTC-D050C0 S-Series | 5MP Color Super Focusing Cameras | ||
| VTC-400PM00-VI | 4MP, Monochrome | ||
| VTC-R030M00-SE | 3MP, Monochrome | ||
| VTC-R030C00-SE | 3MP, Color | ||
| VTC-D030M00-SE | 3MP, Monochrome | ||
| VTC-D030C00-SE | 3MP, Color | ||
| VTC-200PM00-VI | 2MP, Monochrome | ||
| VTC-200PC00-VI | 2MP, Color | ||
| VTC-D016M0A-SE | 1.6M, Monochrome | ||
| VTC-D016C0A-SE | 1.6M, Color | ||
| VTC-D013R00-AD | 1.3M, IR, AC power adapter required |
※You can scroll horizontally.
| Flash Light Controllers Model No. | Flash Light Controllers Type | Hardware trigger cable Model No. | Hardware trigger cable Type |
|---|---|---|---|
| VTVFCV-0648-00 VTVFCV-1248-02 VTVFC-V-06-01 |
6 lighting connections 12 lighting connections, with link function 6 lighting connections |
VTTC-M150-07A | 0.7m |
| VTTC-M150-16A | 1.6m | ||
| VTTC-MW151-16A | 1.6m, 2-branch, connecting 2 controllers | ||
| VTTC-MF151-16A | 1.6m, 4-branch, connecting 4 controllers |
※You can scroll horizontally.
| I/O cable Model No. | I/O cable Type |
|---|---|
| VTIO-A96SN015E | 1.5m, loose ends on one side |
| VTIO-A96SN030E | 3m, loose ends on one side |
| VTIO-A96SN050E | 5m, loose ends on one side |
| VTIO-B96SW130A | 3m, connectors on both ends, Keyence PCL, MP3000/MP2000 series |
| VTIO-B96SW150A | 3m, connectors on both ends, Keyence PCL, KV-7000/KV-5000/KV-3000 series |
| VTIO-B96SW530A | 3m, connectors on both ends, YASKAWA controller, MP3000/MP2000 series |
| VTIO-B96SW550A | 5m, connectors on both ends, YASKAWA controller, MP3000/MP2000 series |
| VTIO-B96SW415A | 1.5m, connectors on both ends, OMRON PCL CJ series/NJ series/NX series |
| VTIO-B96SW430A | 3m, connectors on both ends, OMRON PCL CJ series/NJ series/NX series |
| VTIO-B96SW450A | 5m, connectors on both ends, OMRON PCL CJ series/NJ series/NX series |
※You can scroll horizontally.
| Encoder cable Model No. | Encoder cable Type |
|---|---|
| VTEC-M090-15A | 1.5m |
| VTEC-M090-30A | 3m |
※You can scroll horizontally.
