Connecting a Lighting Controller to the VTV-9000 series makes it possible to turn on, turn off, or dim an LED light according to the image importing timing, enabling real-time control.

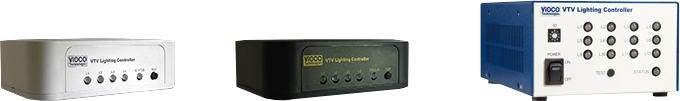

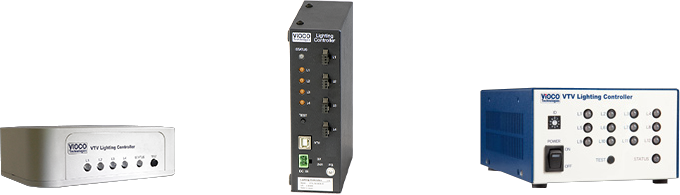

A Lighting Controller can be connected to the VTV-9000 via USB, and there are 4 and 12-channel types available depending on the number of connected LED lights.
| 4-channel | 12-channel | ||
|---|---|---|---|
| Model number | VTVLCV-0412-** | VTVLCV-0424-** | VTVLC-V-12-** |
| Number of lighting connections |
4 | 4 | 12 |
| Output voltage | DC12V | DC24V | DC24V |
| Output capacity | 25W | 50W | 150W |
| Link function | - | - | maximum of 10 units |

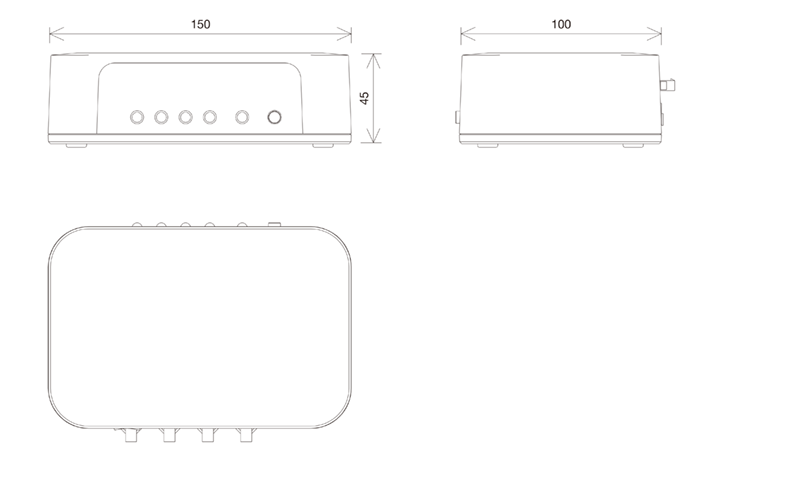

| External dimensions | 150（W）× 100（D）× 45（H）mm 5.9（W）× 3.9（D）× 1.8（H）inch*1 |
150（W）× 100（D）× 45（H）mm 5.9（W）× 3.9（D）× 1.8（H）inch*1 |

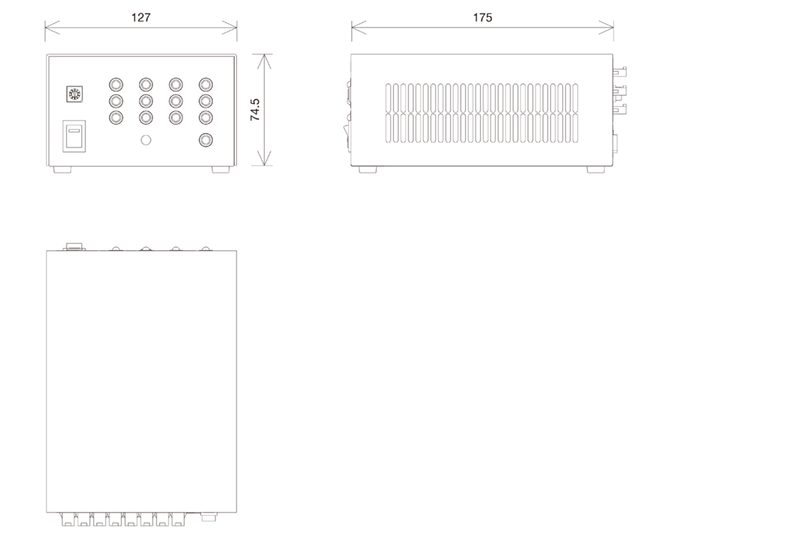

127（W）× 175（D）× 74.5（H）mm 5（W）× 6.9（D）× 2.9（H）inch*1 |
| Weight | 270g | 270g | 750g |
| Power consumption | 30W or less | 60W or less | 180W or less |
※You can scroll horizontally.
