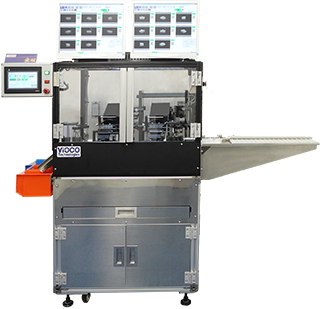

We have achieved high-precision, high-speed inspections equivalent to those done by eye! Our system uses Super Focusing Cameras to precisely inspect the front and back surfaces of objects of inspection without blind spots while rotating them. This is MUSOU, our omnidirectional inspection system, unparalleled world-wide.
| High speed | Omnidirectional inspections are now possible in a short time！ ■Visual inspections of six-sided three-dimensional objects are performed by using two cameras to capture 16 images. |
|---|
| No blind spots | Multiple images can now be captured from an angle！ ■The detection of defects on the inner walls of products, which was once difficult, is now possible. |
|---|
Omnidirectional inspections make it possible to clear strict inspection standards at high speed, which can contribute to your company's productivity and the quality of its products.
Images are captured from an angle to inspect three sides at once.
Absorbs non-defective product variation and makes it easy to divide the inspection range and perform inspections.
The system uses Super Focusing Cameras to rotate a three-dimensional workpiece while performing an omnidirectional inspection at high speed.
Because it has become possible to capture images from an angle, it is now possible to detect defects on product inner walls and other parts that were difficult to detect by using conventional inspection methods.
Resolved by ViSCO
An original ViSCO inspection tool. Based on DefFinder®, which statistically judges defects and variation such as the color and size of non-defective products, SegmentDefFinder is a function that makes it possible to more smoothly inspect three-dimensional molded products. The only necessary setup, which conventionally requires a lot of work-hours, is to specify quadrilaterals in the inspection area to segment it, and the initial settings are applied to the entire area.
| Number of pixels |
2 megapixels | 5 megapixels | 12 megapixels |
| Image transfer speed |
14 ms (normal mode) / 6.7 ms (high-speed mode) | 29 ms (normal mode) / 7.6 ms (high-speed mode) | 53 ms (normal mode) / 19 ms (high-speed mode) |
| External dimensions （W×H×D） |
68×54×68mm 2.7x2.1inchx2.7inch |
35×35×40.7mm 1.4x1.4x1.6inch |
68×81×68mm 2.7x3.2inchx2.7inch |
| Other | Color / monochrome | Color / monochrome | Color / monochrome |
We are an expert group in the field of visual inspections and image processing inspections. We are not just a manufacturer. Instead, we are a visual inspection and image processing inspection system manufacturer that combines knowledge of and experience related to image processing algorithms, optical technology, electronics, and machinery in order to provide comprehensive consulting as a development engineering company.
