Simple
Operation
Space
Saving
CONCEPT
Minimum system
for small start for anyone
An entry-level model of image processing inspection equipment specialized for production site inspection is now available.
Compact size for space-saving installation, yet simple and user-friendly operability allows everyone to easily perform image processing inspections.

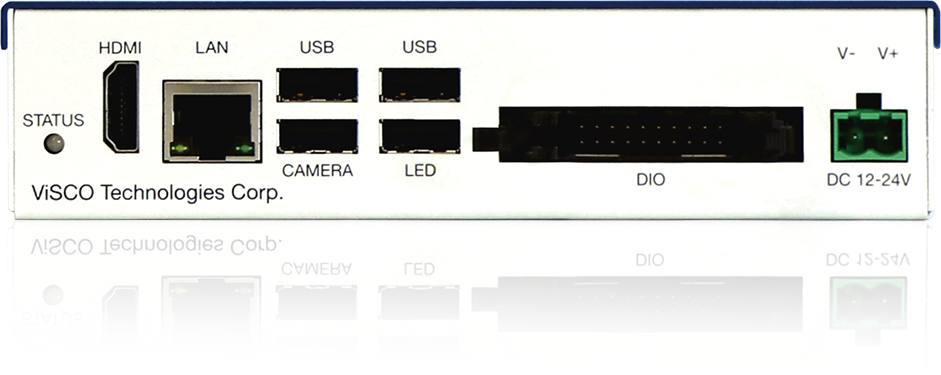

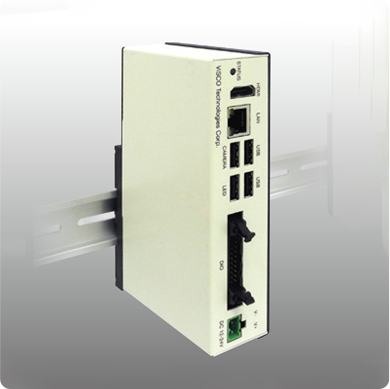

HARDWARE
Compact and space
saving model
for easy installation
- Compact controller that
can be
held in one hand - Installable using DIN rail

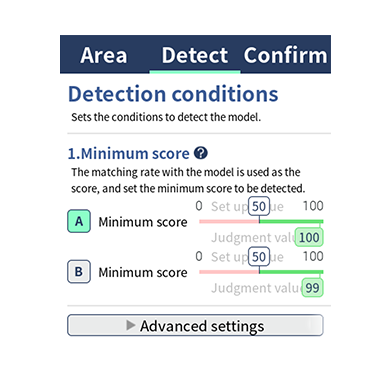

SOFTWARE
Functions specific to FA sites that allow
you to immediately perform the
inspections you want to do
- Clear functionality for immediate
implementation of the desired inspection - Simple/easy operation for everyone
Typical inspection
(application)
Following are the typical inspections that can be performed with tools in VTV-Edge eFA.
Alignment
Correct position gap between the model image and captured object and output the coordinate
Model image

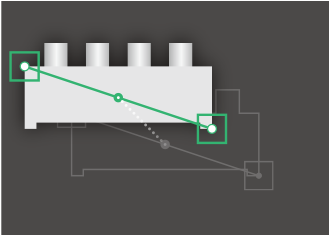

Alignment NC

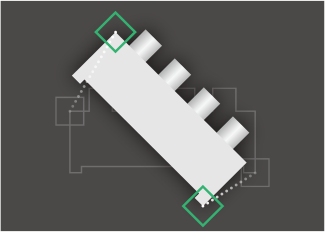

Alignment GF
High search ability
Search for the location of an image that is the most similar to the model image.
The system handles the inspection target's variance for robust and highly accurate image detection.
Model image
Difference in brightness
Difference in shade
Blurring
Thinning
Presence check
Judge whether a target is present or not and whether its orientation is correct or not.

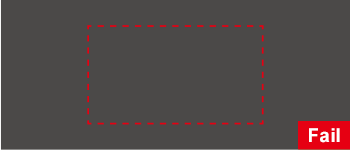

No presence of the target
Wrong orientation

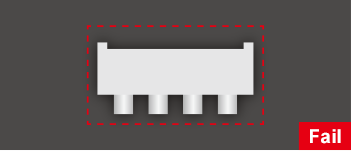

Wrong shape

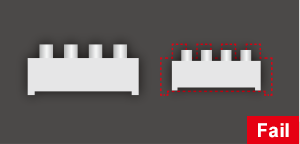

Size check
Measure an object's size
and judge if it matches the specified
size
Length
Check if the length of
a specified area is within the standard or not
Defect check
Compare with the model image and judge whether a target has a defect or not
Specifications
Hardware
- Supported cameras
- VT Digital G
- Max camera connection number
- 1
- Display(Recommended resolution)
- > 1024x768pixel
- Storage
- 16GB (eMMC)
- LAN
- 1ch (100Mbps)
- Interface PIO
- IN8/OUT8
- Display
- HDMI 1port
- External dimensions (WxHxD)
- 154.5x86x36mm
* excluding protruding parts
- Weight
- 500g
- Power
consumption - 45W
- Input voltage
- 12~24VDC ±5%
Dedicated camera
Camera product name | VT Digital G 1.2MP | ||
---|---|---|---|
Image | |||
Pixel count(Select from 3 types) | 1280x960pixel | 640x480pixel | 320x240pixel |
Image transfer speed | 66ms (15fps) | 34ms (29fps) | 18ms (55fps) |
Image sensor size | 1/3inch (4.8x3.6mm) | ||
Pixel size | 3.75x3.75μm | ||
Lens mount | C | ||
External dimensions (WxHxD) | 35x35x25.3mm | ||
Sensor type | Monochrome |
Accessories required for inspection
- Lens
- Lighting
- Display
FAQ
-
QWhat operating methods are available?
-
AOperation via touch panel display (HMI) or mouse/keyboard is available.
-
QWhat is the implementation flow?
-
APlease contact us from the inquiry form.ViSCO sales representative will contact you.
-
QWhat if I face trouble using it?
-
APlease refer to the online help displayed on the operation screen.
Further help is available through ViSCO support hotline.
-
QWhat are the key points of a typical inspection (application)?
-
AIn the alignment inspection, not only OK/NG results but also coordinates and numerical values can be output. It also responds to requests for more detailed data.
-
QWhat about supported languages? Can it be used it outside Japan?
-
AJapanese and English languages are supported. It can be used outside Japan as well.
-
QWhat are the required items to start inspection?
-
ARequired items are VTV-Edge, a camera, a lens, a lighting, a display, cables and so on.
-
QWhat about the cost?
-
ASetup will vary according to inspection target, thus price will vary accordingly. For details, please contact ViSCO via the inquiry form.
