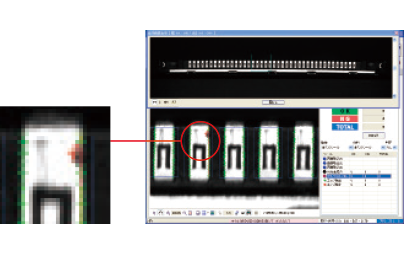

Boundary/Burr/Chip Inspection
Detection of Defects Based on the Distance
in a Straight Line Between Edges

This method is effective when you want to inspect the width between two
points or two straight lines.
The distance between the maximum and minimum edge points can also be used as a judgment value.

Are you struggling with problems like these?

Detection is difficult
due to the
unevenness
of shades
and gradations.
Detection is difficult
because it's impossible
to distinguish
reflections
from scratches.
It's difficult to set up the
lighting conditions
because the inspection
target is round.
ViSCO Technologies can help!

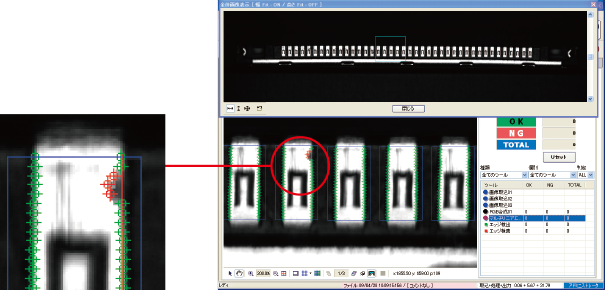

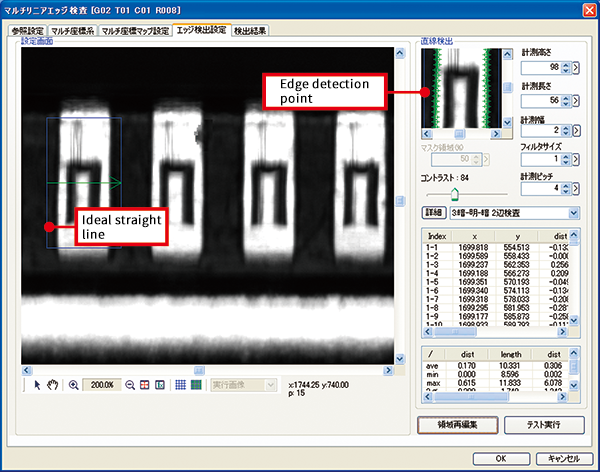

Defects are detected based on the distance from an ideal straight line.

●Straight line boundary (datum (reference) line distance) defects
●Two-straight-line width (detection width) defects
●Inspections of one side are also possible
●Repeated straight-line boundary inspections
